milling machines ZJ-1000 Semi-automatic Corrugated Board Grooving Machine (customized)

ZJ-1000 Semi-automatic Corrugated Board Grooving Machine (customized)

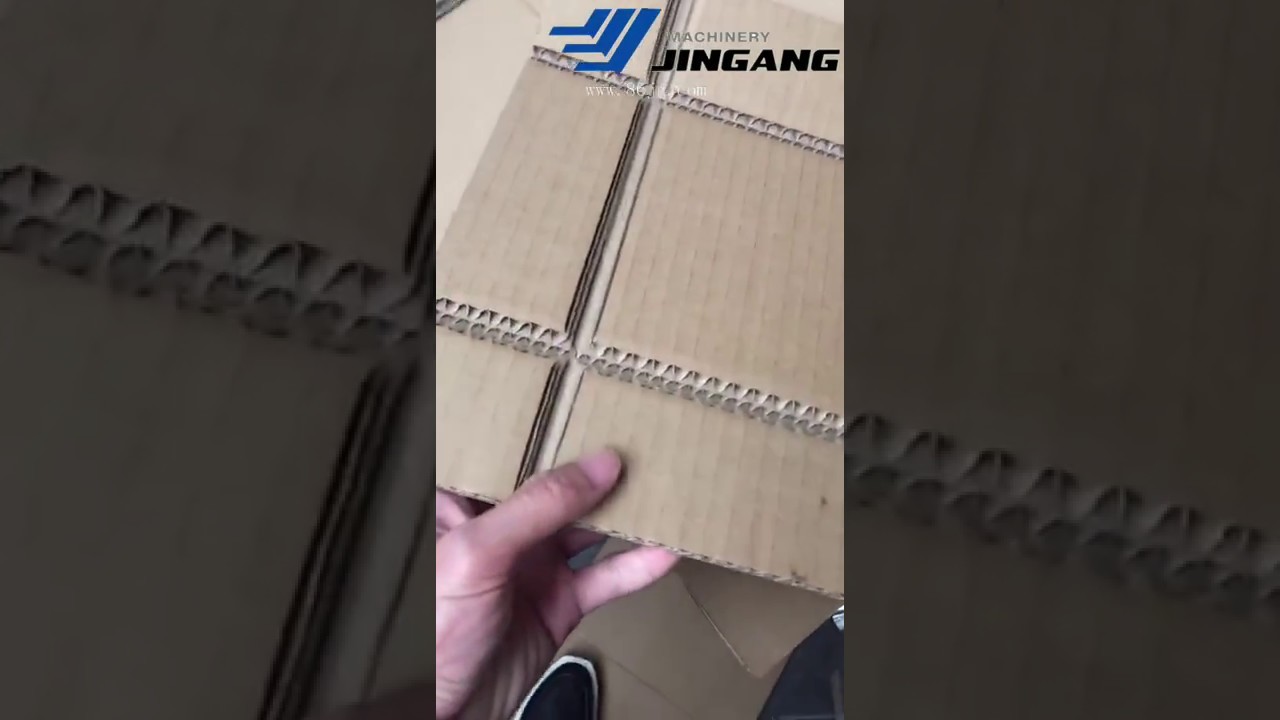

This video is grooving corrgated board for gift box packaging production. Model ZJ-1000. The machinery need customized.

Equipment to produce: hard cover book, cover, covering, lining, ring binder, boxes, slipcases, board slitting, board grooving, box maker, case maker, etc.
Please contact for more production introduction and solutions.
Email: jodiehu17@163.com (Ms. Jodie Hu) Wechat:Jodiehu17

==
ZJ-1000 Semi-Automatic Flatbed Grooving Machine (High Precision)

PRODUCT PERFORMANCE：
1. Friendly human-machine operation, PLC control and servo motor drives.
2. High standard yield: No deflection, no friction, no deformation when feeding and grooving. And It has the highest accuracy.
3. Durable knife, equips with grinder which makes operation easier. Suitable for V shape, L shape and U (Square) shape grooving.
4. Working on the wide flatbed, can groove several pieces by one running time.
5. Widely use: Can be used in grooving the paperboard, corrugated board, cardboard and MDF and other materials etc. Suitable for all kinds of irregular shape board grooving.
6. Purpose: paper converting, cutting groove lines for paper board bending use; apply for gift box, hardcover, luxury packaging production.

TECHNICAL PARAMETERS
Model of Machine ZJ1000-12
Board width 50-1000mm
Board Length 50-650mm
Grooving Gap 0-950mm
Thickness of Paper Board 0.3-3.5mm(customizable)
Number of Grooves at one time 12 pieces at one running time
Grooving Speed 15-20times/min
Motor Power 3.7kw/380v 3phase
Machine Weight 1.5T
Machine Dimension L1800×W1400×H1500mm


Function:
Grooving: Cut few pieces of grooves/scorelines on the paper or mdf board, for gift boxes or other packages bending or folding purpose.

Advantage of Flatbed Grooving Machine:
1. Working on the running flatbed, 8 or 12 knife seats, with sucking system inside.
2. CE Certificate. Safety. European imported knife material, V U L grooving shape.
3. Widely application for cardboard, mdf, paper sheet, chipboard, ivory board, corrugated, etc.
4. Easy to operate & quick to change size.
5. Perfect Effect
-- High precision, No dust, No blur.smooth on the groove surface.
-- Clean and smooth on the groove surface.
-- grooving board flatly(the board will not be bend), high precision, dust-free, protect the environment.
